Delco Remy 35MT™ Medium Duty Gear Reduction Starter

The 35MT is a gear reduction starter for medium duty applications providing more power in a smaller package with patented technology to reduce corrosion and vibration issues. The 35MT features a patented internal magnetic switch solenoid (IMSS) eliminating the need for an IMS switch.

FIND A PART


Quick Links

Download Brochure
Download Brochure (Spanish)
Service Parts

Specifications

Engine Size 12 Volt up to 9.0L
System Voltage 12 Volts
Rotation Clockwise
Mounting SAE #1, SAE #3
Pinion 10 Tooth, 8-10 Pitch
12 Tooth, 8-10 Pitch
Peak Output 4.3 kW
Battery Internal Resistance 4 mOhm
Weight 22.0 lbs / 10.0 kg
Frame Diameter 3.74 in / 95 mm
Overall Length 13.98 in / 355 mm
Motor Type Wound Field
Planetary Gear
Pinion Support Noseless
Drive Design Electrical Soft Start
Warranty
*(US/Canada Only)
1 year / unlimited miles

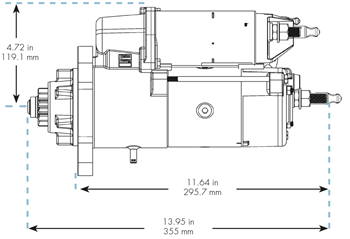

Dimensions
