Delco Remy 41MT™ Heavy Duty Straight Drive Starter

The 41MT is a straight drive starter for heavy duty applications rated at 5.0 kW for 12 volt applications and 7.0 kW for 24 volt applications.

FIND A PART



Quick Links

Installation Instructions
Service Parts

Specifications

Engine Size 12 Volt up to 9.8L
24 Volt up to 12.0L
System Voltage 12 or 24 Volts
Rotation Clockwise
Mounting SAE #1, SAE #3
Pinion 11 Tooth, 6-8 Pitch
11 Tooth, 8-10 Pitch
12 Tooth, 8-10 Pitch
Peak Output 12 Volt 5.0 kW
24 Volt 7.0 kW
Battery Internal Resistance 12 Volt 4 mOhm
24 Volt 10 mOhm
Weight 50.0 lbs / 22.7 kg
Frame Diameter 5.12 in / 130 mm
Overall Length 17.04 in / 432.8 mm
Motor Type Wound Field
Straight Drive
Pinion Support Nose
Drive Design Two-piece rotatable drive housing
(12 or 24 positions)
Positive Engagement
Rubber Shock Absorber
Optional Features Jump-Start Protection
(meets SAE J1493)
Over-Crank Protection
Warranty
*(US/Canada Only)
1 year / unlimited miles

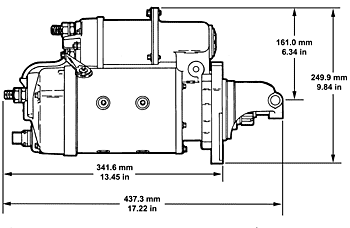

Dimensions
