Delco Remy 50MT™ Heavy Duty Straight Drive Starter

The 50MT is a straight drive starter for heavy duty and industrial applications.  The 50MT is available in 12, 24, 32, and 64 volt models and can start engines with displacement up to 29.5 liters.

FIND A PART

Quick Links

Installation Instructions
Service Parts

Specifications

Engine Size up to 29.5L
System Voltage 12, 24, 32 or 64 Volts
Rotation Clockwise
Counterclockwise
Mounting SAE #3
Pinion 11 Tooth, 6-8 Pitch
12 Tooth, 8-10 Pitch
12 Tooth, MOD 3 (Metric)
Peak Output 12 Volt 8.5 kW
24 Volt 9.0 kW
32 Volt 13.0 kW
64 Volt 12.0 kW
Battery Internal Resistance 12 Volt 2 mOhm
24 Volt 8 mOhm
32 Volt 11 mOhm
64 Volt 40 mOhm
Weight 79.0 lbs / 35.8 kg
Frame Diameter 5.59 in / 142 mm
Overall Length 20.40 in / 518.2 mm
Motor Type Wound Field
Straight Drive
Pinion Support Nose
Drive Design Rotatable Drive Housing
Positive Engagement
Rubber Shock Absorber
Optional Features Jump-Start Protection
(meets SAE J1493)
Warranty
*(US/Canada Only)
1 year / unlimited miles

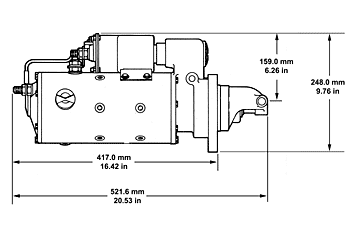

Dimensions
