Delco Remy 31MT™ Medium Duty Gear Reduction Starter
Developed from the 29MT design - of which there are more than 1.25 million OE units installed - the 31MT prodvides a wide range of coverage for Class 6 & 7 commercial vehicles. This robust, corrosion resistant starter is ideal for applications with frequent start and stops.
FIND A PART
Quick Link
Installation Instructions
Specifications
| Engine Size |
12 V up to 9 liters
|
| Rotation |
Clockwise |
| Mounting |
SAE #1 |
| Pinion |
9 Tooth, MOD 3 (Metric)
10 Tooth, 8-10 Pitch
10 Tooth, 10-12 Pitch
|
| Peak Output |
12 Volt 4.1 kW
|
| Weight |
18.5 lbs / 8.4 kg |
| Frame Diameter |
3.5 in / 90 mm |
| Overall Length |
11.46 in / 291 mm |
| Motor Type |
Wound Field
Planetary Gear |
| Pinion Support |
Noseless |
| Drive Design |
12 Volt Positive Shift Engagement
|
Warranty
(Applies to North America) |
1 year / unlimited miles
2 year / unlimited miles - School Bus |

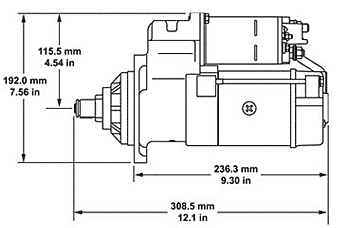

Dimensions
